Solution Verification

Streamline tractography is the numerical solution of an ordinary differential equation, \(d\mathbf{x}/ds = \mathbf{v}(\mathbf{x})\). This page establishes that HINEC's solver converges under refinement of both discretisations — the integration step and the spatial sampling of the direction field — and measures the rate of each.

Result

Both axes converge monotonically at stable power-law rates. Under step refinement the integrators reach their formal orders: Euler \(0.99\), RK2 \(2.01\), RK4 \(\mathbf{4.00}\) with a \(C^2\) spline interpolant. Under spatial refinement the order is \(\approx 2.25\). Spatial resolution is the binding constraint: past a moderately coarse step there is little left to gain from refining time. The same orders hold across eight bundles, including the most curved ones, and the ladder is unchanged when the reference is replaced by an independent integrator (ode113): the solver converges to the true solution of its ODE, not merely to itself.

Scope — verification, not validation

Verification asks whether the equations are being solved correctly. Validation asks whether the answer corresponds to anatomy. This page is the former only, and no claim about anatomical accuracy follows from anything below. The ISMRM ground-truth bundles appear here solely to define a seed region; for how the streamlines actually measure against them, see ISMRM Scoring, where between 28% and 62% of produced streamline length leaves the bundle it was seeded in.

---

Method

The problem

Streamline tractography integrates \(d\mathbf{x}/ds = \mathbf{v}(\mathbf{x})\), where \(\mathbf{v}\) is the principal eigenvector field and \(|\mathbf{v}| = 1\), so the parameter \(s\) is arc length. Seeds are the 8,384 voxels of the ISMRM ground-truth UF_right bundle mask with FA > 0.15.

The angle termination criterion is disabled (angle_max: 0). It is a stopping rule whose budget scales with the step size, and a rule that changes with the refinement parameter is not a fixed problem to converge to.

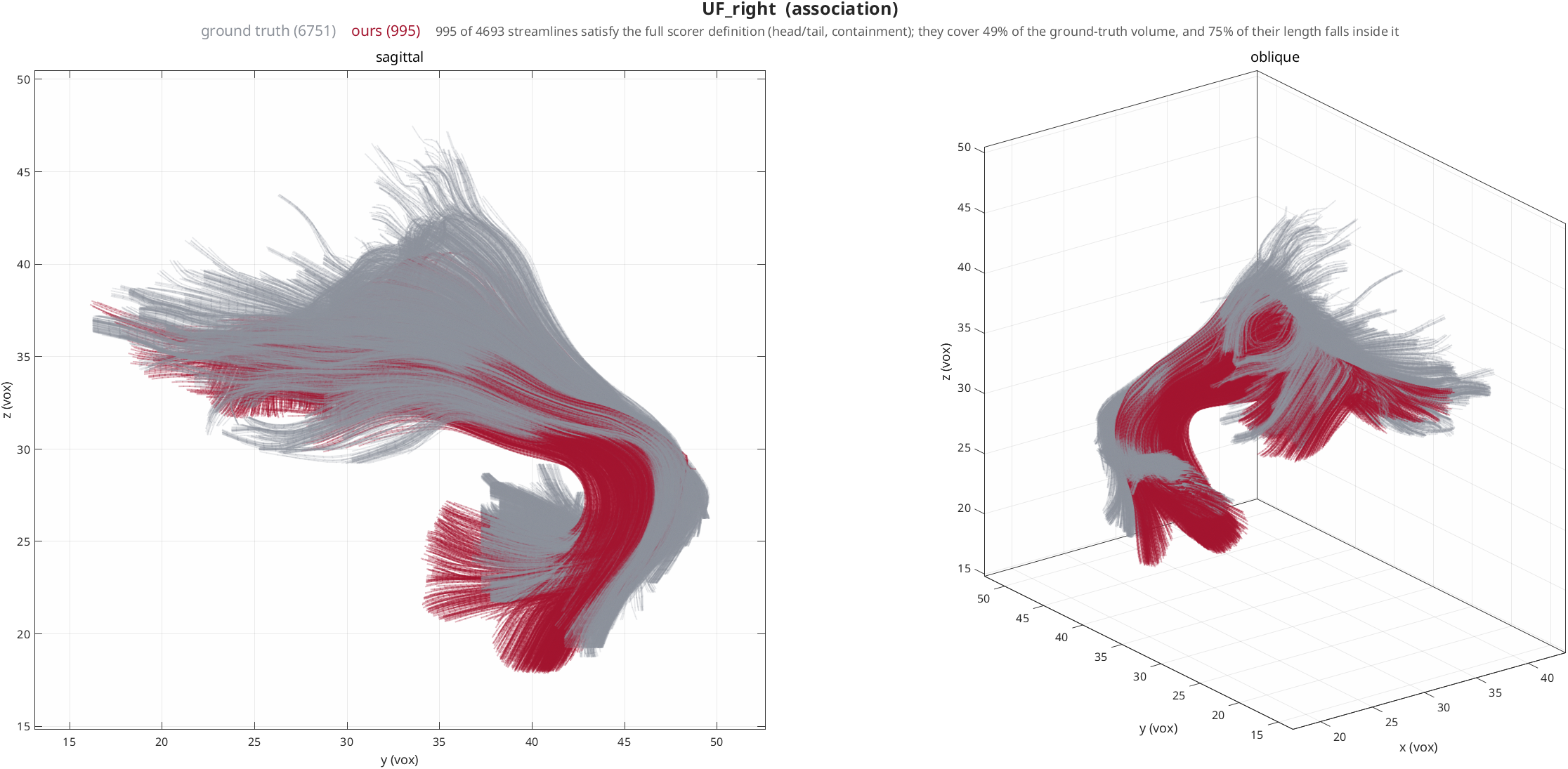

The seed region. Grey is the ISMRM ground-truth UF_right bundle, red is ours, segmented by the scorer's full definition (head/tail endpoints, containment, and any inclusion or length criteria the bundle declares). Shown only to establish what the convergence ladders are tracking through — it is a validation figure and the ladders do not depend on it.

Do not read this as an accuracy claim

Convergence is solution verification — it shows the discretisation is solved correctly, not that the answer is anatomically right. Those are independent, and this pipeline is demonstrably good at the first and middling at the second: the same tracker that converges at observed order 4.00 recovers 49% of the UF_right ground-truth volume, with 75% of its streamline length falling inside that bundle. Whole-brain, it scores mean F1 0.346. The limit is the single-tensor model, not the numerics. See ISMRM Scoring.

The error metric

Each run is compared against a reference run. Both are streamline sets, so the comparison must decide which streamline corresponds to which, and then which point corresponds to which. nim_convergence_error does this in six steps:

1. Pair by seed. Matched through track_meta.seed_index, not by position in the array — the tracker compacts out seeds that produce nothing, so "streamline 7" is a different fibre in the two runs.
2. Anchor at the seed. A track is stored as [reversed backward half; seed; forward half], so index 1 is a termination point. Arc is measured outward from the seed.
3. Parameterise by nominal arc. The point \(n\) steps from the seed is at arc \(nh\) by construction, since each step advances exactly \(h\) of arc. Cumulative chord length is not used: it underestimates true arc by \(h^2/(24R^2)\) per unit length, putting the two runs on parameters that disagree at \(O(h^2)\).
4. Window to ±10 voxels about the seed, using only streamlines that reach that in both directions in both runs. This excludes termination, which is a discontinuous function of \(h\).
5. Compare the test track's own stored points against a splined reference. The test points are exact integrator output and are not interpolated; resampling them linearly imposes a chord-error floor of \(\approx h^2/(8R)\) that has nothing to do with the integrator.
6. Reduce. Median over the streamlines measurable at every rung — a fixed population. The 95th percentile is tracked separately.

Steps 3 and 5 both matter at \(O(h^2)\)

Either one, done naively, imposes a floor no integrator can beat and reports order 2 for every method regardless of the tableau — which is indistinguishable from a genuine physical cap unless methods with known formal orders are run alongside as a control.

Reference solutions

One shared reference per experiment, always the most accurate configuration available, never a refined copy of the method under test. Referencing Euler to Euler leaves the reference carrying ~25% of the error being measured at the finest rung, and inflates Euler's observed order from 0.99 to 1.24.

---

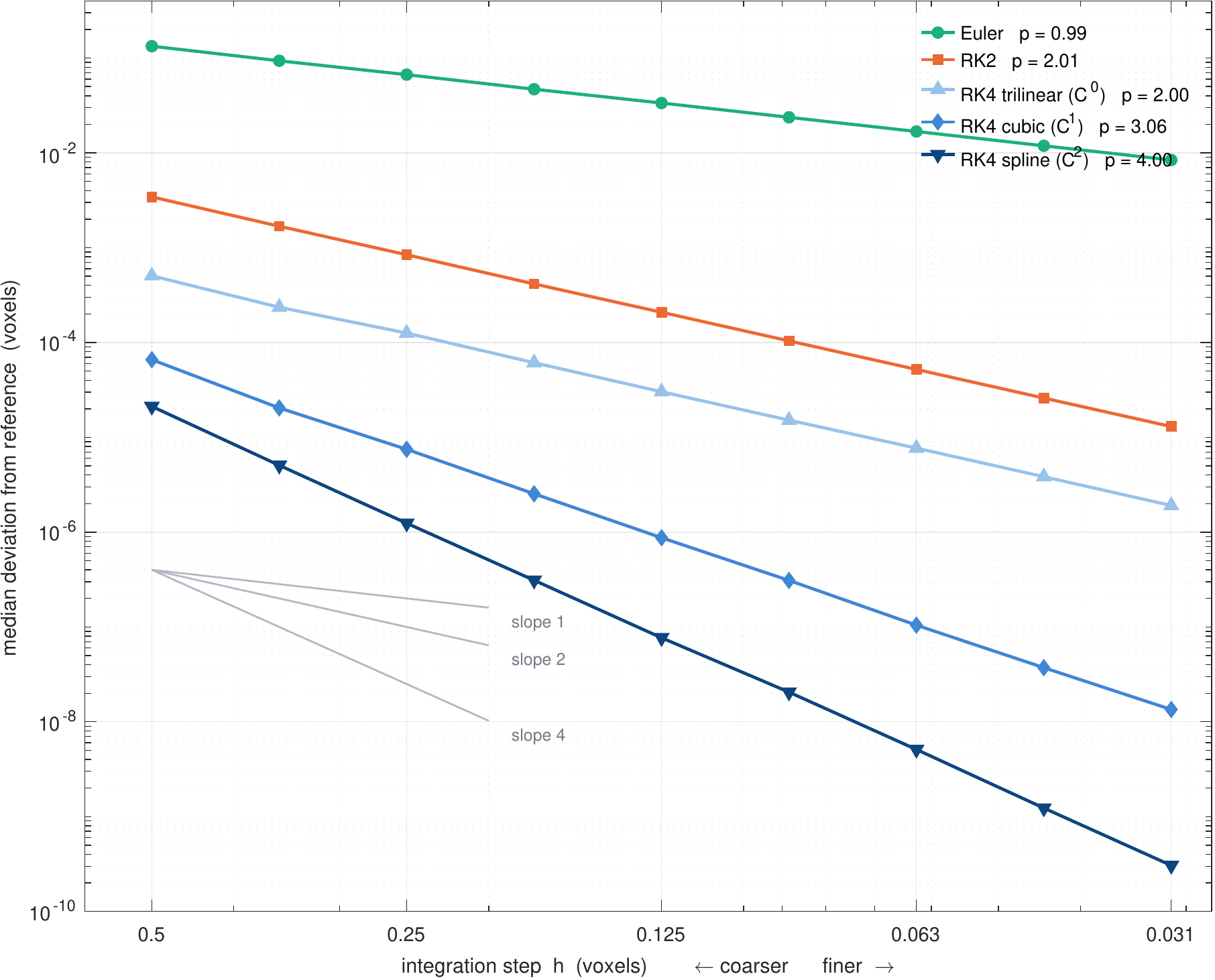

Refinement in time

Nine step sizes, refined in ratios of \(\sqrt{2}\) from 0.5 to 0.03125 voxels; reference RK4 at \(h = 0.0078125\); fixed population \(n \approx 1300\).

method	field	formal	\(h=0.5\)	\(h=0.031\)	observed
Euler	—	1	1.33e-1	8.41e-3	0.99
RK2	—	2	3.43e-3	1.30e-5	2.01
RK4 trilinear	\(C^0\)	4	5.05e-4	1.91e-6	2.00
RK4 cubic	\(C^1\)	4	6.58e-5	1.35e-8	3.06
RK4 spline	\(C^2\)	4	2.12e-5	3.05e-10	4.00

Euler and RK2 land on their formal orders. Because those two answers are known in advance they serve as a control on the measurement itself: a metric that reports 0.99 and 2.01 for methods whose orders are 1 and 2 is measuring the integrator and not an artefact of its own.

The observed order of RK4 is set by the smoothness of the interpolant — one order per continuous derivative, until the tableau's formal order is reached. The three RK4 rows differ only in the interpolation kernel.

Local slopes are stable across every triplet (the asymptotic-range condition), and the 95th percentile converges at the same rate as the median, so the whole distribution converges rather than a well-behaved majority.

---

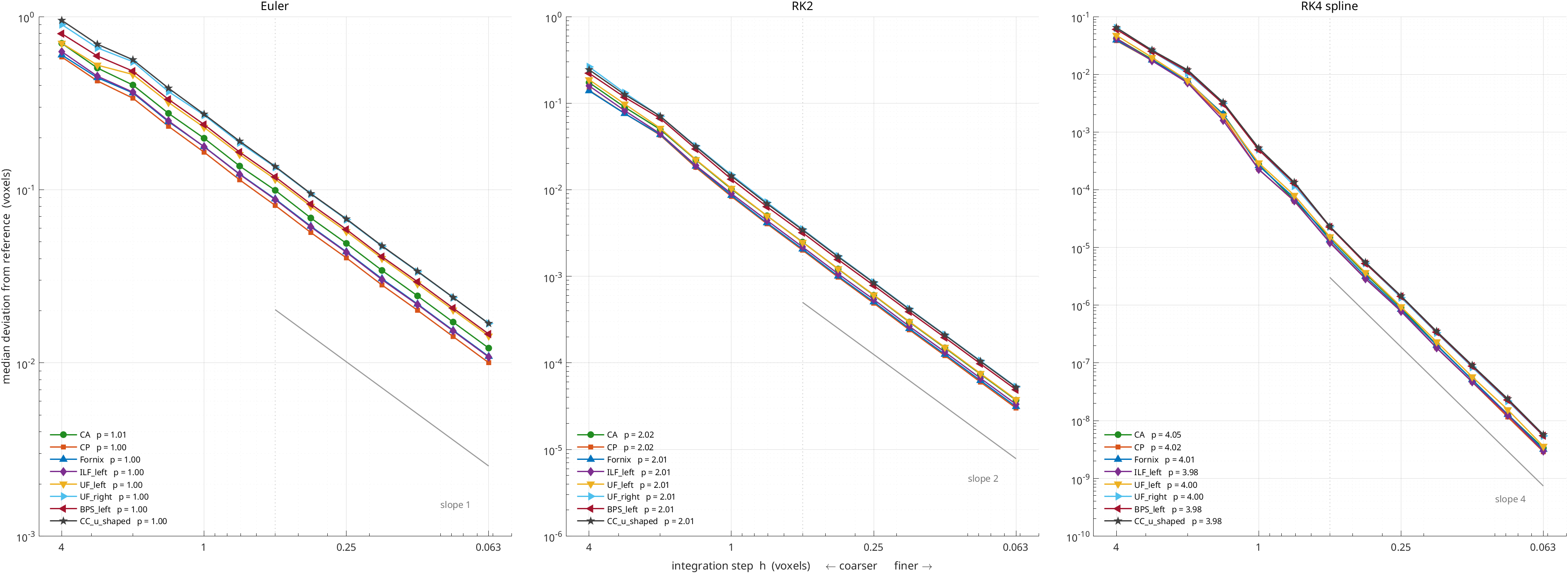

The same ladder on curved and irregular bundles

The UF_right result above could be a property of one gently curved bundle. The same time ladder was therefore run on eight bundles chosen for curvature and awkward geometry — anterior commissure (CA), posterior commissure (CP), fornix, left inferior longitudinal fasciculus, both uncinates, the left brainstem projection (BPS_left) and the U-shaped callosal fibres (CC_u_shaped) — with 13 rungs from \(h = 4\) to \(0.0625\) (ratio \(\sqrt 2\)), spline interpolation, and a shared RK4 \(h = 1/64\) reference per bundle. Seed density 1 per voxel, FA > 0.15, window ±10 voxels.

bundle	seeds	Euler	RK2	RK4 spline	RK4 median at \(h=0.5\)
CA	427	1.01	2.02	4.05	1.49e-5
CP	1869	1.00	2.02	4.02	1.24e-5
Fornix	3965	1.00	2.01	4.01	1.35e-5
ILF_left	1850	1.00	2.01	3.98	1.21e-5
UF_left	1208	1.00	2.01	4.00	1.53e-5
UF_right	1478	1.00	2.01	4.00	2.29e-5
BPS_left	6509	1.00	2.01	3.98	2.27e-5
CC_u_shaped	14509	1.00	2.01	3.98	2.32e-05

Observed order = slope of \(\log(\text{median})\) against \(\log h\) over the rungs \(h \le 0.5\). Every ladder is monotone over that range.

The orders do not move with curvature, and they should not: the order of a Runge–Kutta method is a property of the integrator on a smooth field. Curvature enters the error constant — the vertical offset of each line — not the exponent. What curvature does change is the step at which a given accuracy is reached: for Euler the largest step with median error below 0.05 voxels ranges from 0.19 (UF_right) to 0.31 (CP). At \(h = 4\) the coarse end of every ladder is pre-asymptotic (curved lines at the left of the figure), which is why the fit is restricted to \(h \le 0.5\).

Individual streamlines do exist whose error is not monotone in \(h\): on the UF_right RK4 rung \(h = 0.71 \to 0.5\), 40 of 1525 seeds got worse on refinement. Their departure points sit at near-planar tensors — median \(\lambda_2/\lambda_1\) 0.84, against 0.68 over all points the bundle traverses (rank-sum \(p = 3\times10^{-6}\)) — where the principal direction of the interpolated dyadic is ill-conditioned and a small change in the path flips which eigenvector wins. They are a property of the field, not the integrator, and do not survive the median.

---

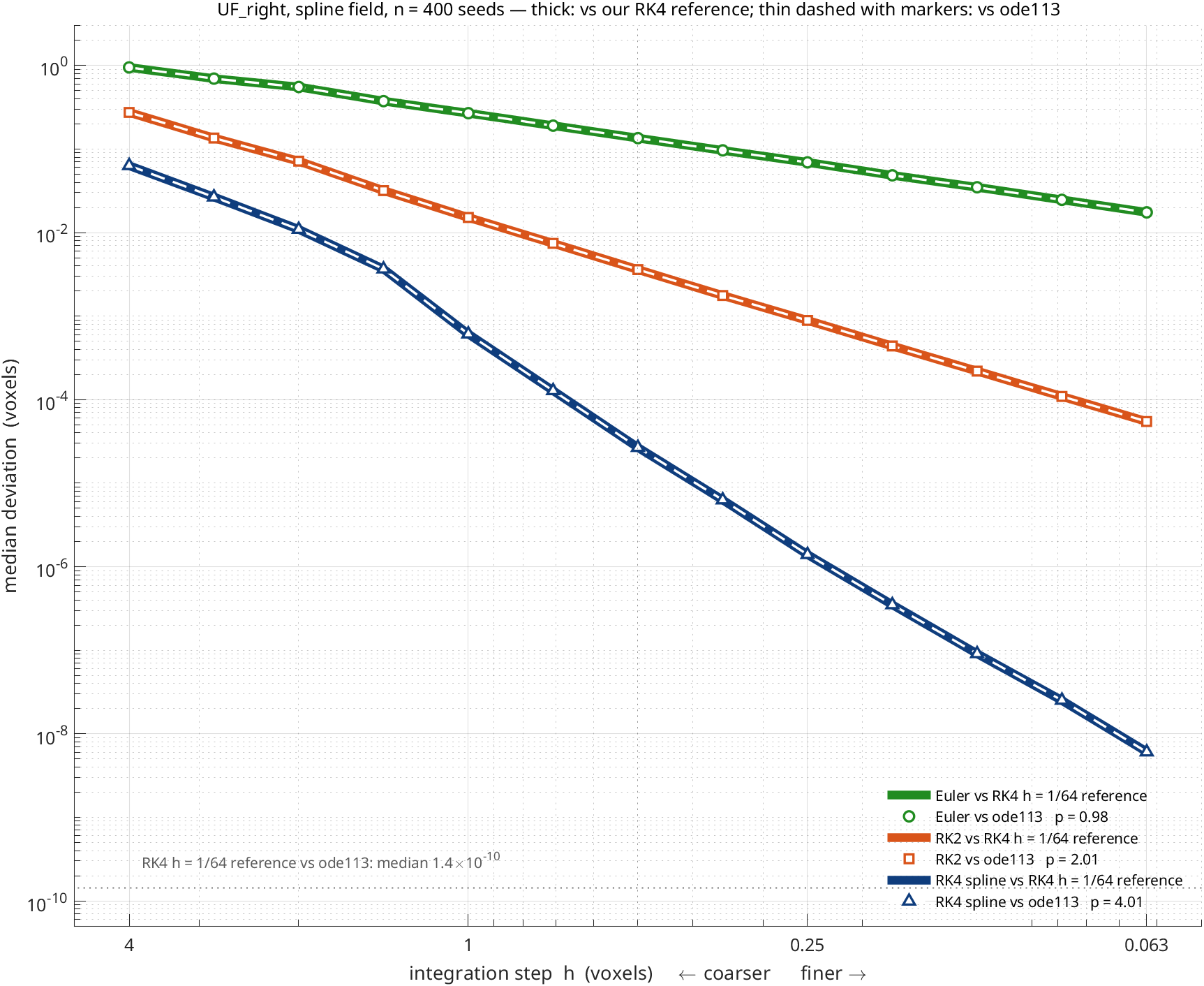

An independent reference

Every ladder above measures distance to our own tracker at a small step. A systematic error shared by every rung — a bias in the direction field, a sign-alignment rule, an off-by-half-step in the sampling — would be invisible to such a ladder, which would still report perfect slopes. This is the sense in which self-convergence shows consistency but not correctness.

To close that gap the same spline dyadic field was handed to MATLAB's ode113 (variable-order Adams–Bashforth–Moulton, AbsTol = RelTol = 10^{-13}), which shares no code with rk4_integration_step: no fixed step, no tableau, no sign-alignment logic beyond the one-line dot(v, v_prev) < 0 flip inside the right-hand side. Each ladder rung on UF_right (400 seeds, same ±10-voxel window) was then measured against both references.

method	\(h\)	vs ode113	vs RK4 \(h = 1/64\)
Euler	0.5	1.3512e-1	1.3512e-1
Euler	0.0625	1.7453e-2	1.7453e-2
RK2	0.5	3.6051e-3	3.6051e-3
RK2	0.0625	5.4716e-5	5.4716e-5
RK4 spline	0.5	2.6717e-5	2.6717e-5
RK4 spline	0.0625	6.0485e-9	6.0845e-9
fitted order (\(h \le 0.5\))		0.984 / 2.012 / 4.014	0.984 / 2.012 / 4.014

The two columns agree to three or four significant digits at every rung, and the RK4 \(h = 1/64\) reference itself sits a median \(1.4\times10^{-10}\) voxels (p95 \(3\times10^{-8}\)) from the ode113 solution. The tracker converges to the solution of the ODE it claims to solve, at the rate it claims. The remaining question — whether that ODE is the right one for the anatomy — is validation and is not addressed here.

The one seed that disagrees

Of the 400 seeds, one differs from ode113 by 2.9 voxels (the next-worst seven are all below \(5\times10^{-3}\)). It is seed 467 at voxel [25 53 22], backward half only. The two integrators agree to \(6\times10^{-6}\) voxels until arc \(-0.66\) and separate within the next 0.15 voxels of arc, where the streamline is at \(z \approx 21.4\), between

• voxel (25,53,22): FA 0.612, \(\mathbf v_1 = [-0.09,\ 0.40,\ 0.91]\), and
• voxel (25,53,21): in mask, FA 0, all eigenvalues 0, \(\mathbf v_1 = [1, 0, 0]\) — a placeholder written where the tensor fit was skipped (its \(b_0\) signal is 30 against 67 next door, below the fit threshold).

The interpolated dyadic between a real direction and the placeholder passes through an exact eigenvalue crossing — \(\lambda_1 - \lambda_2\) is 1.06 at \(z = 22\), 0.031 at \(z = 21.4\), 0.37 at \(z = 21.2\) — with the principal axis rotating through ~90° across it. The right-hand side of the ODE is discontinuous there, and two correct integrators may legitimately leave on different branches. The FA stop does not intervene because FA is interpolated linearly from 0.612 to 0 and is still 0.25 at the crossing.

This is not an integrator error. It is a data-preparation defect: 3219 in-mask voxels carry the [1 0 0] placeholder (2965 of them on the mask's outer shell, 3183 adjacent to a voxel with FA ≥ 0.15), so any streamline that grazes the mask edge sees a spurious \(x\)-axis direction bleed into the interpolant. The fix is one line in nim_field — zero the dyadic where the tensor is zero, so the field decays to nothing at the edge instead of rotating toward \(x\) — but it changes tracking near the boundary and needs a re-score before it is adopted. It is recorded here as an open finding.

---

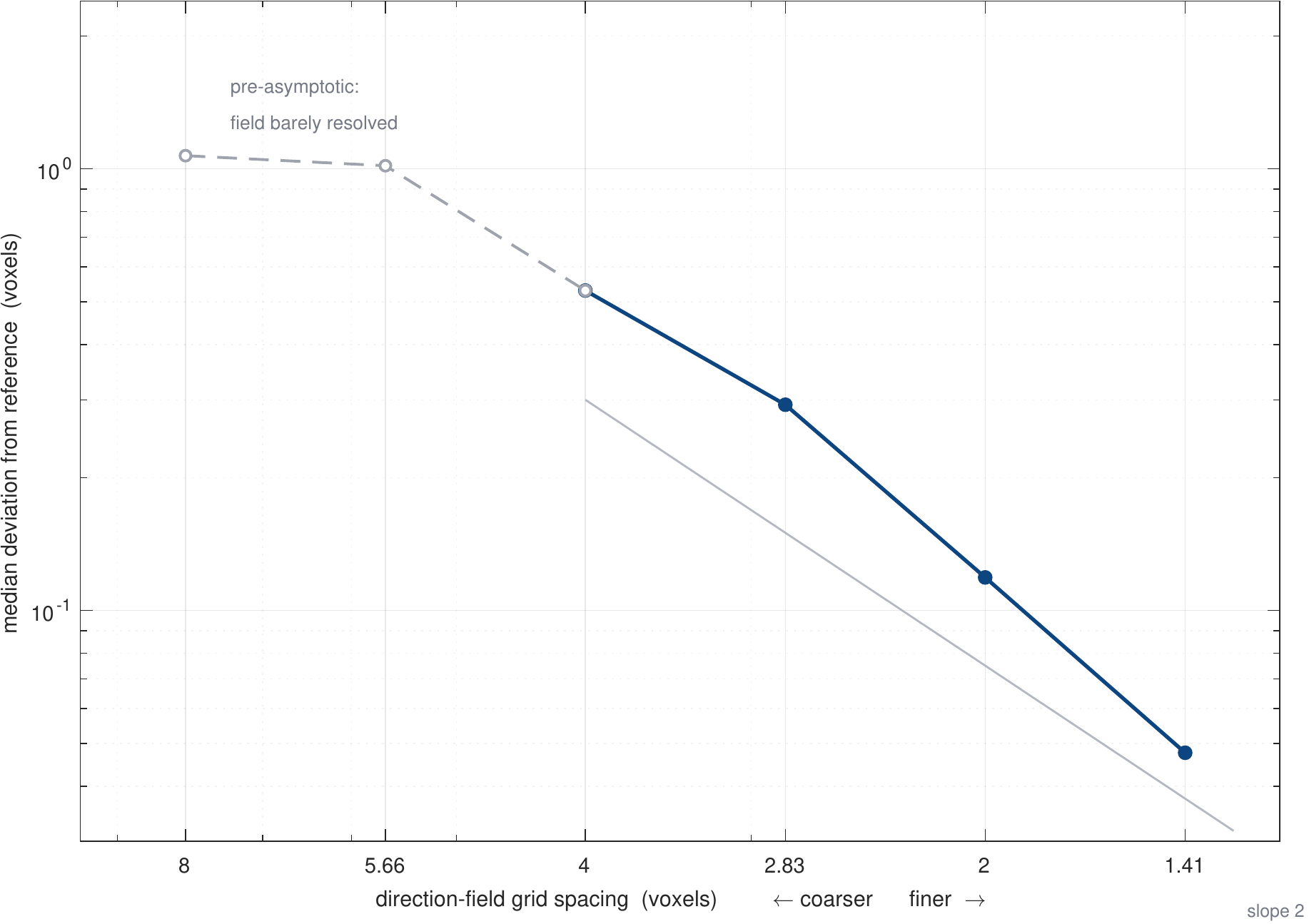

Refinement in space

The direction field is sampled on a grid of spacing \(1/u\) voxels before the interpolants are built — see interpolation.upsample. The coordinate frame is unchanged, so positions, step sizes and lengths stay in native voxel units and runs at different factors are directly comparable.

The integration step is pinned at \(h = 0.125\) with RK4 and spline interpolation, where the temporal error is \(\approx 8\times10^{-8}\) voxels — four to six orders below the spatial errors being measured.

spacing (vox)	median	p95	local \(p\)
8.000	1.0713	6.709	—
5.657	1.0167	5.148	0.15
4.000	0.5303	3.899	1.88
2.828	0.2924	2.520	1.72
2.000	0.1188	1.839	2.60
1.414	0.0476	0.193	2.64

Fitted order 2.25 over the four asymptotic rungs (\(n = 761\)), rising to 2.43–2.62 over the finest three. Error falls by a factor of 22 as the grid refines 5.7×, and the p95 falls with it (6.71 → 0.19). The two coarsest rungs are pre-asymptotic: at 8-voxel spacing the field is barely resolved and the error saturates near one voxel.

The limit is the native-resolution interpolant, not the anatomy

Sampling above the acquisition grid returns error that is exactly zero — a spline through samples of itself reproduces itself — which says the 2 mm samples already carry all the information there is. This ladder demonstrates grid convergence of the algorithm; whether 2 mm resolves the anatomy is a validation question requiring different data.

---

Which axis binds

RK4 with spline interpolation converges at order 4 in time and \(\approx 2.3\) in space. Resolution is the binding constraint. Beyond a moderately coarse step there is little to gain from refining time; effort is better spent on the spatial representation of the direction field.

Practically: pair interpolation.method: spline with integrator.method: rk4. At \(h = 0.5\) that combination is 162× more accurate than RK2 and 6300× more accurate than Euler, so the larger step fourth-order accuracy affords can be taken without giving the accuracy back.

---

What does not limit the observed order

Three candidate explanations were tested directly and rejected. The negative results constrain what the numbers above can mean.

tested	result
Field noise — a field whose every voxel direction is rotated through a random angle \(\sigma\), swept 0–20° against the real field's measured median of 4.84° between adjacent voxels, with random per-voxel sign flips	RK4 stayed above order 2.5 and 2–756× ahead of RK2 throughout
Coherent discontinuities — a surface across which the principal direction jumps by up to 60°, crossed mid-integration (the shape a fibre crossing takes)	RK4 still finished near order 4 and 9× ahead of RK2
Stage fallbacks — rk4_integration_step substitutes the previous stage when interpolation refuses a probe below the FA floor	0.80% of probes, independent of \(h\) — present, but far too small to govern the observed order

---

Threats to validity

• One subject. Every result is from the ISMRM 2015 phantom. The time ladder has been repeated on eight bundles; the space ladder and the ode113 cross-check are UF_right only.
• Verification, not accuracy. The ode113 cross-check shows the tracker converges to the true solution of its ODE, which removes the "converges only to itself" objection. It says nothing about whether that ODE — the principal eigenvector of a single tensor — is the right model of the tissue.
• The spatial ladder is not fully asymptotic. Local order is still rising at the finest rung, so 2.25 is a lower bound.
• Termination is quantised to one step. Measured arc-length difference is 0.87–0.98 \(h\) across a 16× refinement, so the endpoint converges at \(O(h)\) while the interior converges at the integrator's order. The windowed metric excludes this deliberately; it remains a real defect.
• MMF is untested here. The angle criterion in nim_tractography_mmf_connframe is covered only by a source-text check, not a behavioural test.
• Mask-edge placeholders. 3219 in-mask voxels carry a zero tensor with a default [1 0 0] eigenvector (see the one seed that disagrees). Streamlines that graze the mask edge integrate through a discontinuous field there. The median statistics are unaffected; individual streamlines can be.

---

Reproduction

# time ladder, one rung
./bin/run_tractography.sh reference \
    --set seeding.roi=UF_right --set seeding.fa_min=0.15 \
    --set interpolation.method=spline --set integrator.method=rk4 \
    --set integrator.step=0.125 --set output.arc_step=0

# space ladder, one rung — add
    --set upsample=0.5

# curved-bundle ladders: same command with --set seeding.roi=<CA|CP|Fornix|ILF_left|UF_left|UF_right|BPS_left|CC_u_shaped>
# and --set termination.max_arc=20, for h = 4, 2.83, 2, ..., 0.0625; reference at 0.015625

The ode113 cross-check builds the identical griddedInterpolant(..., 'spline') dyadic field, takes the principal direction with nim_principal_dir, and integrates from each seed in both directions with odeset('AbsTol',1e-13,'RelTol',1e-13); each ladder rung is then compared to deval of that solution at its own nominal arcs, using the same ±10-voxel window.

Analysis is nim_convergence_error(test_run, reference_run, struct('prefix_arc', 10)), which returns per-seed errors so a fixed population can be intersected across rungs.

Verification suite: 82/82 passing, including behavioural cases that integrate real streamlines through synthetic fields of known analytic curvature — order verification for each integrator, the angle criterion firing exactly at the field's true turning rate, sign-invariance of the dyadic interpolation, and the endpoint/containment bundle gates.
