ISMRM 2015 Challenge Scoring¶

The ISMRM 2015 Tractography Challenge ships a synthetic whole-brain phantom together with the ground truth used to score it. This page documents what is in that scoring package, how a bundle is defined by it, what the shipped HINEC scoring path does with it, and what our reconstructions currently measure. Everything below is read from data/ismrm2015/scoring_data_Renauld2023/ (Renauld et al. 2023 revision of the original 2015 scoring system).

The scorer expects a whole-brain tractogram

The Renauld 2023 scorer takes one whole-brain tractogram and segments it into 26 bundles using ROI gates. Its headline numbers — mean_f1, mean_OL, mean_OR_gt, VB — are averages over all 26. Feeding it streamlines from a single seed ROI is not a valid use of it: at most one bundle can be recovered, so VB caps at 1 of 26 and a mean over 26 bundles is dominated by the 25 that were never attempted. No score obtained that way is comparable to a published challenge result. Every score collected for HINEC so far is of that kind; the whole-brain submission has not been run.

Reconstruction against ground truth¶

Each bundle below is seeded from its own ISMRM mask and then segmented by the full scorer definition taken from config_file_segmentation.json: one endpoint in each of the head and tail ROIs, every point inside the containment corridor, plus any inclusion mask and length bounds that bundle declares (Cingulum_right carries length_x, CC_u_shaped an inclusion mask and three length bounds). Grey is the ground-truth tractogram; colour is ours.

Two different things are reported, and conflating them flatters the result:

coverage of the ground truth — what fraction of the true bundle's volume our streamlines occupy. This is the recall-like number and the honest headline.
length inside the ground truth — what fraction of our streamline length falls within the true bundle. This is precision-like, and it is always the prettier of the two.

bundle	produced	meets full definition	covers GT volume	length inside GT
CC_u_shaped	39959	9864	53%	87%
BPS_right	17210	1771	31%	87%
ILF_right	6404	1541	52%	75%
Cingulum_right	14074	1940	46%	94%
UF_right	4693	995	49%	75%
SLF_right	10620	1350	37%	71%

We reconstruct between a third and a half of each bundle, and what we do reconstruct sits mostly inside the true bundle (71–94%). Earlier versions of this page quoted 94–100% "agreement"; that was the precision-like quantity measured against the corridor rather than the ground truth, and it should not have been the headline.

The produced column is not a failure rate

It is dominated by a seeding choice. These runs seed uniformly inside each bundle's containment corridor, and that corridor is far larger than the bundle: for Cingulum_right it is 38188 voxels against the 8070 the bundle actually occupies, so 79% of the corridor is other tissue. 62% of the seeds therefore start off-bundle, and 93% of those leave the corridor — which is the correct behaviour for a tracker following the fibres that are really there. Seeds that do start inside the true bundle stay contained at 41%, against 7% for the rest. Only a whole-brain run gives this denominator a meaning; see below.

Whole-brain benchmark¶

config/ismrm_wholebrain.yml produces one whole-brain tractogram and lets the scorer segment all 26 bundles out of it, which is what the challenge is designed for and what makes the numbers comparable to a published submission.

metric	value
streamlines	60932
mean F1	0.346
mean overlap (OL)	0.322
mean overreach (OR_gt)	0.288
valid bundles found	22 of 26
valid streamlines	31681 (52%)
invalid streamlines	29251

DTI with an accurate integrator finds most of the bundles and gets about half its streamlines accepted. That is a middling result, and the reason is structural rather than numerical.

Why streamlines leave the bundle¶

The direction field is not the weak link. Sampled along the ground truth, the interpolated field the tracker actually follows sits 5.6–9.1° from the true tract direction, and RK4 on it converges at observed order 4.00 (docs/CONVERGENCE.md). The failures are not integration error.

Taking the 715 Cingulum_right streamlines that demonstrably ran along the bundle and then left it, and classifying the voxel where each one first departed by more than 45°:

what the tensor looks like where it departs	share	interpretation
planar (C_P > 0.12), FA normal	27%	two fibre populations in one voxel
FA collapsed below 0.08	9%	too little anisotropy to define a direction
linear (median C_L 0.191), FA normal (0.184)	65%	a confident single direction belonging to another bundle

The median departure is at z = 48, on the dorsal arc, not at the bend — only 42% occur in the bend band at all.

This matters for what to do next. field: csd resolves multiple fibre orientations per voxel and should recover a useful part of the 27%. It cannot address the 65%: CSD separates fibres by orientation, and two bundles running tangentially share one orientation, so nothing local distinguishes them. That needs non-local information — global tractography, anatomical priors, or bundle-level regularisation.

Derailment is rare, concentrated, and irreversible¶

A streamline is a path integral, so a direction error is not averaged away by later steps. Measured over 9254 streamline arms that start on the true Cingulum_right tract:

after a streamline departs by >45°	recovers directional agreement
sustained departure (held over ≥2 voxels)	2.2%
same, with ≥30 voxels of track still to run	2.1%
transient crossing of the 45° line	~50% of all crossings; these recover

A sustained derailment is effectively absorbing, and giving the streamline more track to run does not help it recover. An earlier version of this page claimed this using a containment envelope test, which reported 88% recovery and was wrong: re-entering a fat, folded bundle envelope somewhere else is nearly free and says nothing about whether the trajectory was recovered.

The risk is not spread evenly along a streamline. 50% of all departures occur in 0.3% of the traversed arc, and 90% in 1.5% — a few hundred voxels. Within the bundle, low linearity predicts them best (7× hazard range across C_L quintiles) and high planarity is the strongest positive predictor (4×, monotone). FA barely predicts anything (1.4× range, in the wrong direction), which is worth noting given that FA is what termination tests.

The integrator is not the problem¶

Three runs on matched seed sets differing only in integration method:

method	formal order	S(20 vox)	S(40 vox)	vs RK4 (log-rank)
Euler	1	0.444	0.168	p = 0.37, not significant
RK2	2	0.318	0.095	p < 1e-4
RK4	4	0.408	0.194	—

Euler and RK4 are statistically indistinguishable, and the ordering is not monotone in integrator order. The integrator shifts survival by ≤0.10 while the effect itself destroys 60–80% of streamlines. Truncation error does not behave like this: the dominant error is model error, not numerical error, which is consistent with RK4 converging at observed order 4.00 on this same pipeline. (Measured on UF_right with ~6× fewer arms and the flicker-inclusive departure definition; it supports "not ordered by integrator order", not a stronger claim.)

These remain qualitative figures, and seeding from a bundle's own mask is a far easier problem than the whole-brain submission the challenge is designed around, so none of this constitutes a challenge score.

Projection¶

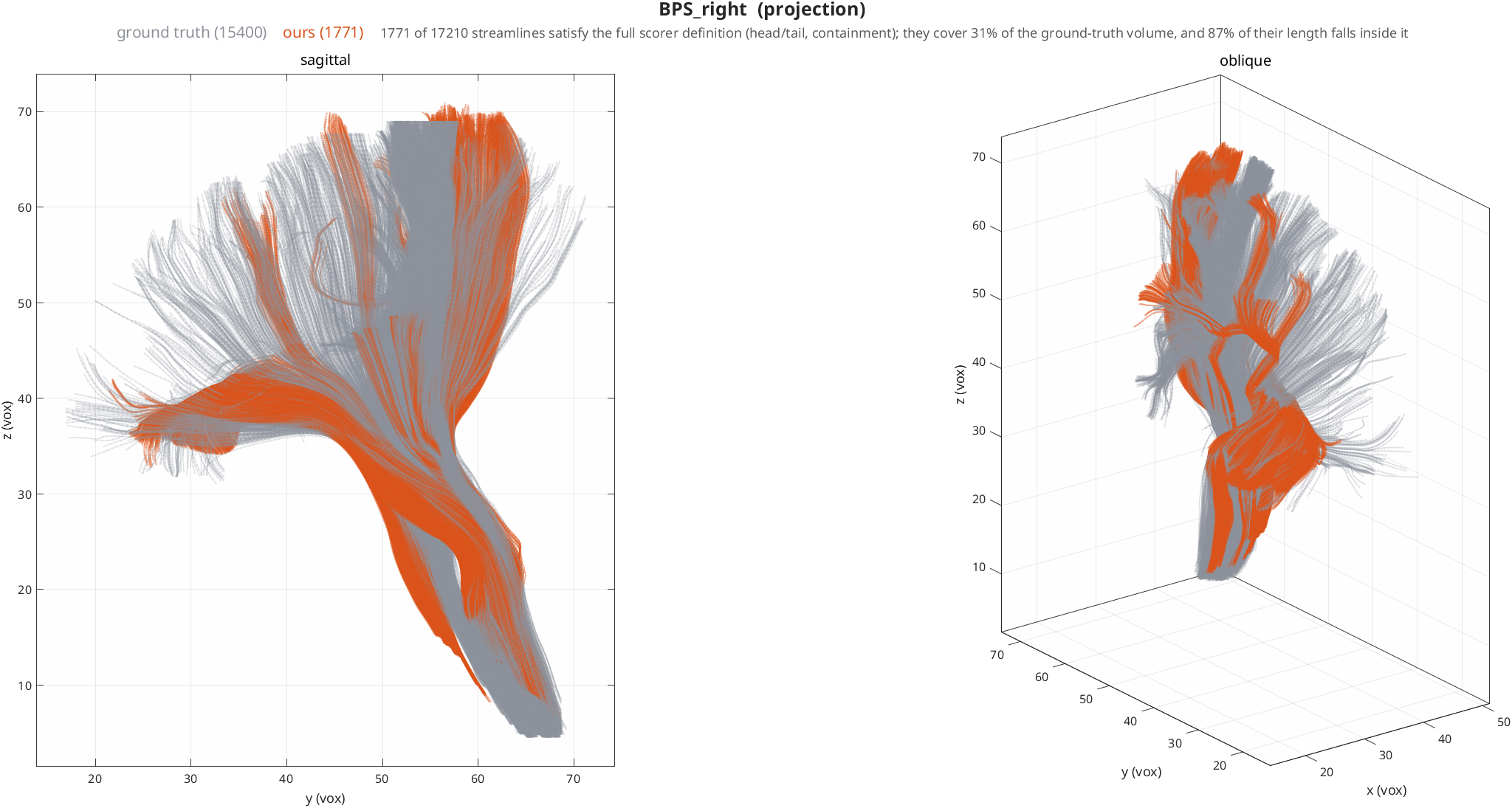

BPS_right

Commissural¶

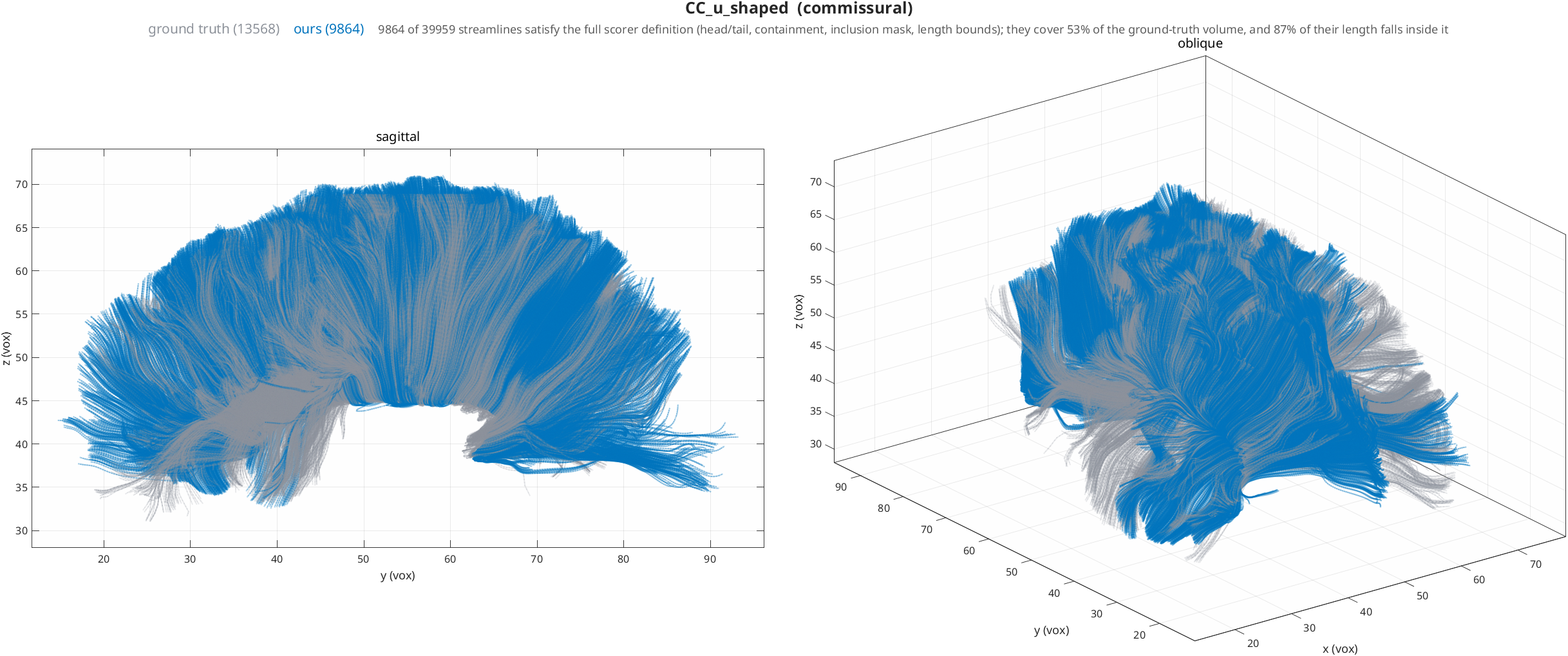

CC_u_shaped

Association¶

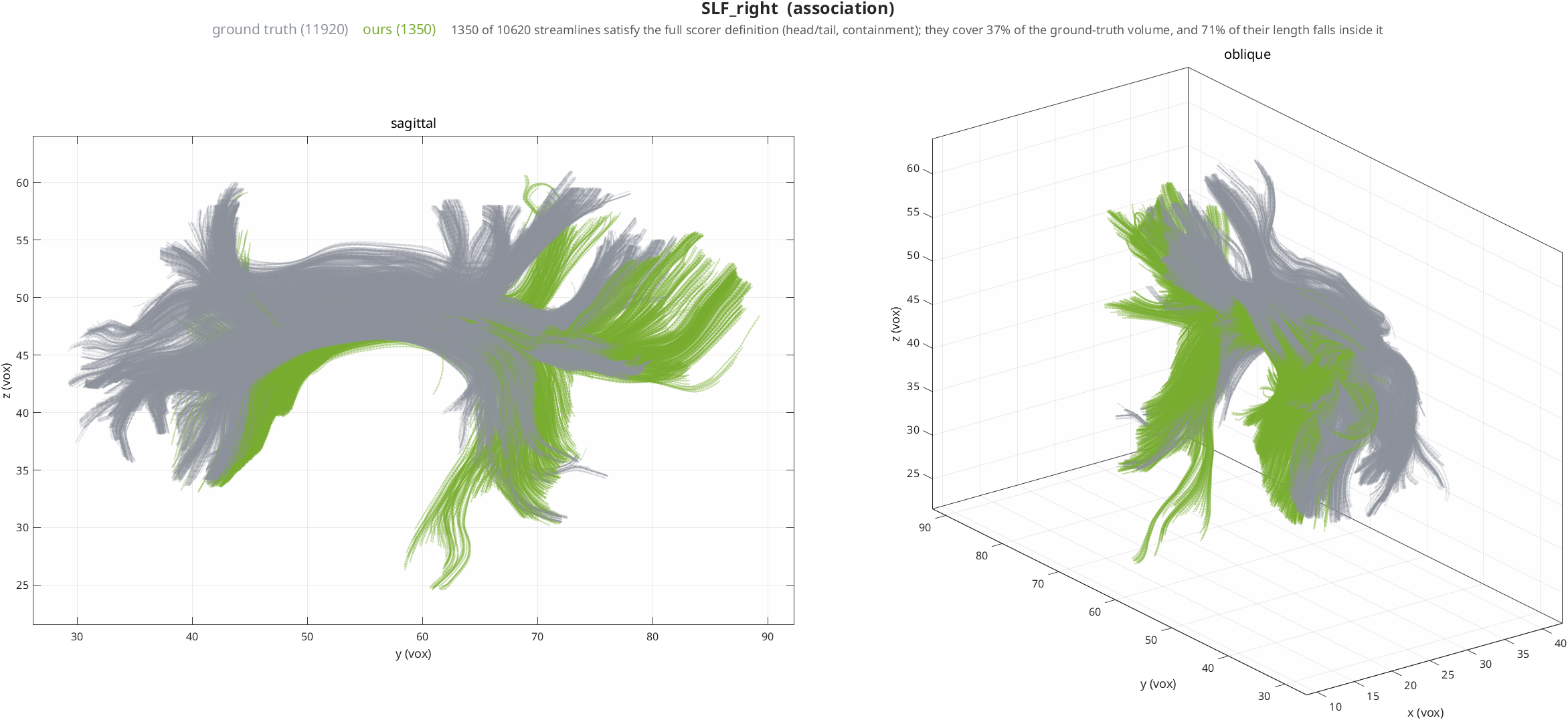

SLF_right

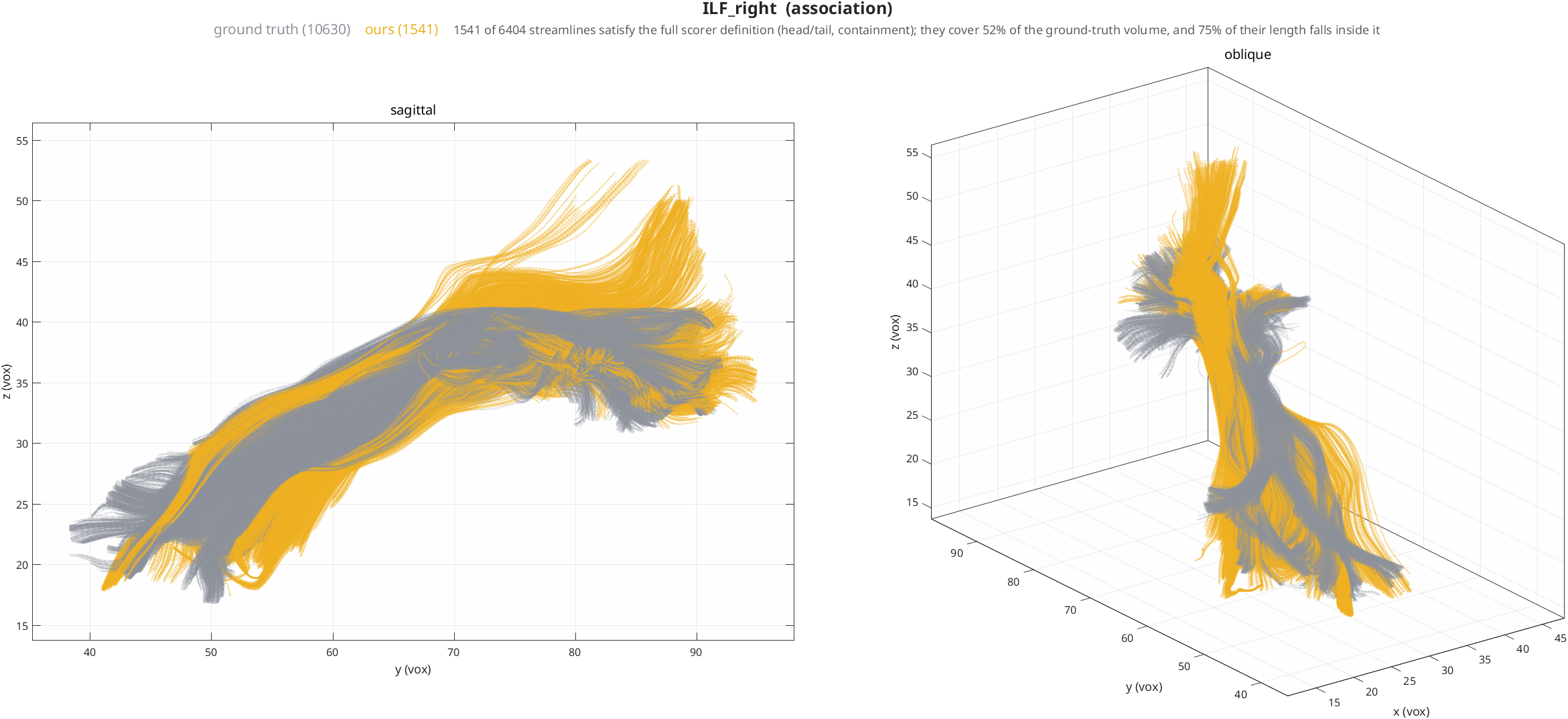

ILF_right

UF_right

Limbic¶

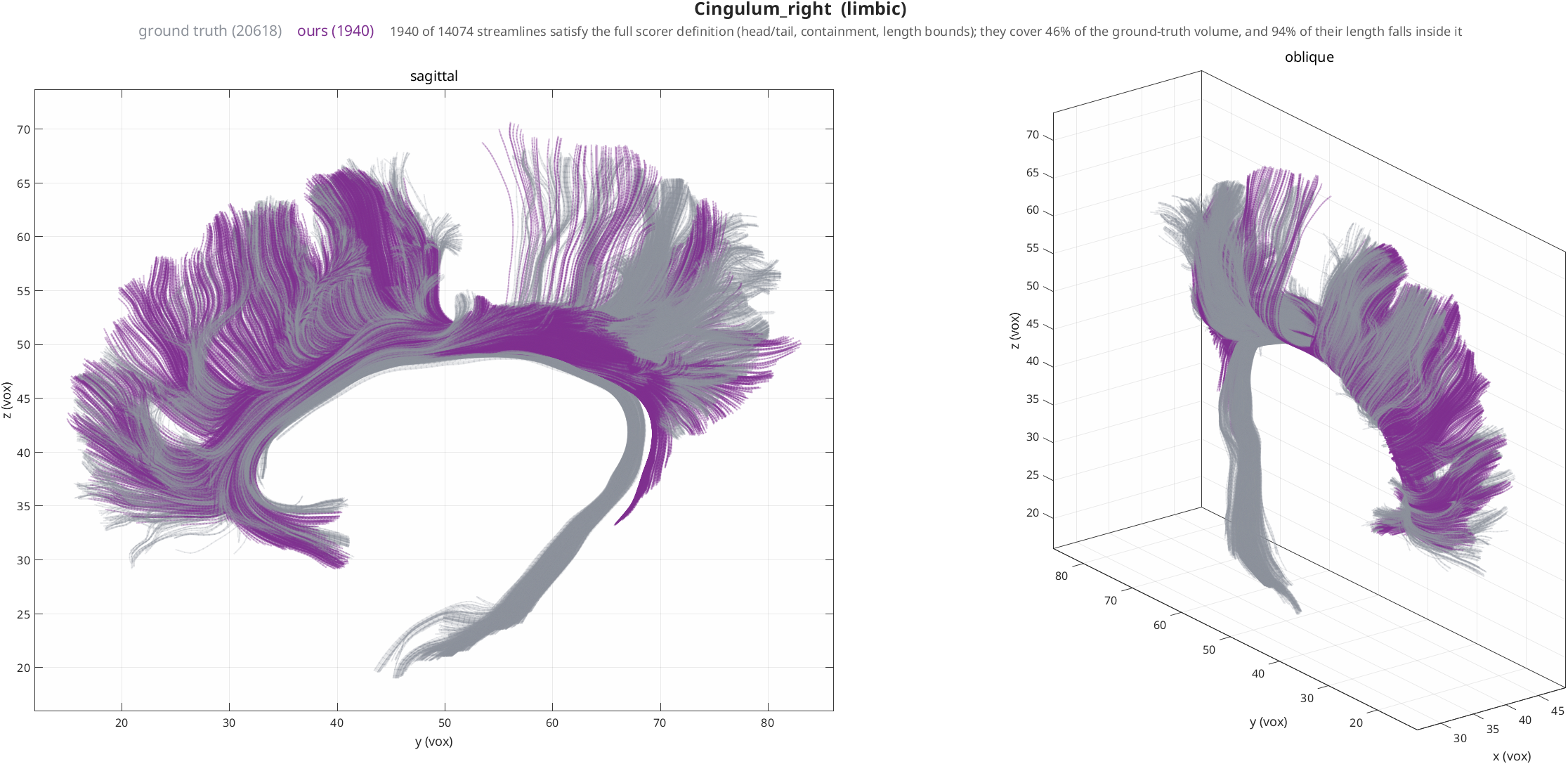

Cingulum_right

What defines a bundle¶

A bundle in this scoring system is an endpoint pair plus a containment corridor, not a parcellation label. config_file_segmentation.json gives one entry per bundle:

{
  "UF_right": {
    "all_mask": "ROI/all_masks/UF_right.nii.gz",
    "head":     "ROI/endpoints/UF_right_head.nii.gz",
    "tail":     "ROI/endpoints/UF_right_tail.nii.gz"
  }
}

A streamline is assigned to UF_right only if one end lands in the head ROI, the other end in the tail ROI, and every point lies inside all_mask. Two optional gates appear on some bundles:

any_mask — at least one point must fall inside it. Present on 6 of the 26 entries: CC_u_shaped, MCP, and the four ICP_*_part* entries.
length, length_x, length_y, length_z, length_x_abs — total streamline length and per-axis extents, in millimetres. Present on 4 of the 26: CC_u_shaped, Cingulum_left, Cingulum_right, MCP. CC_u_shaped is the fully loaded case:

{
  "CC_u_shaped": {
    "all_mask":     "ROI/all_masks/CC_u_shaped.nii.gz",
    "any_mask":     "ROI/any_masks/CC_u_shaped_inclusion_mask.nii.gz",
    "head":         "ROI/endpoints/CC_striatal_left.nii.gz",
    "tail":         "ROI/endpoints/CC_striatal_right.nii.gz",
    "length":       [70, 1000],
    "length_y":     [0, 32],
    "length_x_abs": [35, 1000]
  }
}

An atlas label of the same name is not the same region

A JHU atlas label and an ISMRM bundle can share a name and describe very different volumes. JHU label 47, Uncinate fasciculus R, is 24 voxels on the 2 mm DWI grid; the corresponding ISMRM bundle-density mask (scoring_data_2015/masks/bundles/) occupies 1503 and the Renauld containment corridor 14260, and the two overlap at a Dice of 0.018. Seeding from the atlas label and scoring against the ISMRM bundle of that name is therefore not a like-for-like comparison. Address the challenge's own regions instead: build the parcellation from the challenge masks with nim_parcellation_from_masks, after which ROI names resolve against nim.roi_masks (see nim_roi_mask).

Bundle gates in HINEC¶

Two tractography.filter predicates express the scorer's definition directly:

key	test
`filter.endpoints_in`	two regions; keep a track only if one end lands in each, either way round
`filter.contained_in`	keep a track only if every point lies inside the given regions

These are distinct from filter.include_roi, which is a waypoint test — it asks whether a track passes through a region, not where it stops.

tractography:
  filter:
    endpoints_in: [UF_right_head, UF_right_tail]
    contained_in: [UF_right]

What is in the scoring package¶

scoring_data_Renauld2023/
├── bundles/                       21 ground-truth .trk files
│   └── sub_bundles/               8 further .trk files (CC and ICP subdivisions)
├── ROI/
│   ├── all_masks/                 26 containment corridors
│   ├── any_masks/                 4 inclusion masks
│   └── endpoints/                 45 head/tail ROIs (some shared, e.g. brainstem)
├── config_file_segmentation.json  26 bundle definitions (ROI gates)
├── config_file_tractometry.json   bundle name -> ground-truth .trk
└── t1.nii.gz                      1 mm reference, 180x216x180

The 21 top-level bundles are commissural (CA, CC, CP, MCP), association (Cingulum, ILF, OR, SLF, UF, each left and right), projection (BPS, ICP, SCP, each left and right) and Fornix. The segmentation config reaches 26 entries because CC is scored as four sub-bundles (CC_temporal, CC_u_shaped, CC_ventro_striatal1, CC_ventro_striatal2) and each ICP as two parts.

Ground-truth streamline counts span two orders of magnitude, which is why a mean over bundles is not a mean over streamlines:

bundle	streamlines	bundle	streamlines
MCP	21008	ILF_left	11164
Cingulum_right	20618	BPS_left	11162
CC	16550	ILF_right	10630
BPS_right	15400	OR_right	9524
Cingulum_left	14206	OR_left	7252
SLF_left	12483	UF_right	6751
SLF_right	11920	UF_left	5899
ICP_left	4217	Fornix	3827
ICP_right	3224	SCP_left	1795
SCP_right	1560	CA	430
CP	365

CP and CA are the smallest and, together with the commissures, the hardest to recover.

The scoring path¶

bin/run_ismrm_scoring.sh <run_dir> is the single entry point. It performs three steps:

Convert. scripts/hinec_to_trk.py turns the newest <run_dir>/tractography/tracks*.mat into scoring/tracks.trk in RAS world millimetres, using the preprocessed DWI affine from <run_dir>/intermediate/ for voxel→world placement (falling back to data/ismrm2015/ismrm2015.nii.gz) and attaching the scoring t1.nii.gz as the saved TRK reference so scilpy's space-compatibility check against the ROI masks passes.
Score (Renauld 2023). scil_tractogram_segment_with_ROI_and_score runs against config_file_merged.json — the segmentation rules and the per-bundle gt_mask in one file, produced by scripts/build_ismrm_scoring_config.py. Without the merged config the run yields bundle counts but no Dice or overlap. Output: <run_dir>/scoring/renauld2023/results.json.
Cross-check (optional). If data/ismrm2015/scoring_data_2015/ and the original challenge scorer are present, the dedicated 2015 scorer is run as well, into <run_dir>/scoring/dedicated2015/.

Headline keys in results.json:

key	meaning
`mean_f1`	Dice-style agreement per bundle, averaged over the 26
`mean_OL`	overlap — fraction of the true bundle covered (recall)
`mean_OR_gt`	overreach — produced volume outside the true bundle
`VB`	valid bundles: how many of the 26 were recovered at all

Bundle recognition by shape (RecoBundles) is an alternative the challenge tooling supports and the HINEC path does not use; it is more forgiving of ROI misalignment and a correspondingly weaker test of anatomical placement.

Coordinate spaces¶

Scores collapse to zero on a space mismatch, and a space mismatch looks exactly like a tracking failure, so it is worth checking before believing a low score.

	HINEC tracks	ISMRM ground truth
format	`.mat`, cell array of N×3	`.trk` (TrackVis)
coordinates	voxel indices, 1-based (MATLAB)	RAS world millimetres
grid	DWI, 2 mm, 90×108×90	T1, 1 mm, 180×216×180
space attribute	implicit	explicit in the TRK header

Since August 2022 the challenge scoring code loads tractograms through Dipy's StatefulTractogram and no longer applies the half-voxel shift that older TrackVis-era readers used. Coordinates are taken from the header as given, so a TRK written with the wrong reference is silently misinterpreted rather than rejected: the ROI gates then match nothing and every bundle scores 0.

hinec_to_trk.py handles the conversion, and nim_read_trk performs the reverse mapping (world RAS → DWI voxel space) when ground truth is loaded into MATLAB for plotting. Skipping that reverse step draws the ground truth at half scale in a corner — which, again, reads as a tracking failure and is a units bug.

To check alignment directly, compare coordinate ranges and header spaces of the two tractograms:

import nibabel as nib
import numpy as np

ours = nib.streamlines.load('tracks.trk')
gt   = nib.streamlines.load('scoring_data_Renauld2023/bundles/CA.trk')

for name, trk in [('ours', ours), ('ground truth', gt)]:
    pts = np.vstack(list(trk.streamlines))
    print(name, [f'[{pts[:, i].min():.1f}, {pts[:, i].max():.1f}]' for i in range(3)])

Both should span the same millimetre range. If they do not, fix the reference before reading anything into the scores.

Limits of this benchmark¶

One phantom, one subject. Nothing measured here establishes generality.
The ground truth is synthetic. The bundles are anatomically motivated but simulated; agreement with them is not agreement with a real brain.
ROI-gate sensitivity. Bundle assignment depends on precise mask alignment, so registration error is charged to the tracker.
Bundle-averaged metrics. mean_f1 weights CP (365 ground-truth streamlines) as heavily as MCP (21008).

For a complementary check with a biological rather than synthetic reference, see IronTract, which scores against tracer injections.
