HINEC: HIgh-order NEural Connectivity

Human brain white matter tractography pipeline with YAML-based parameter configuration.

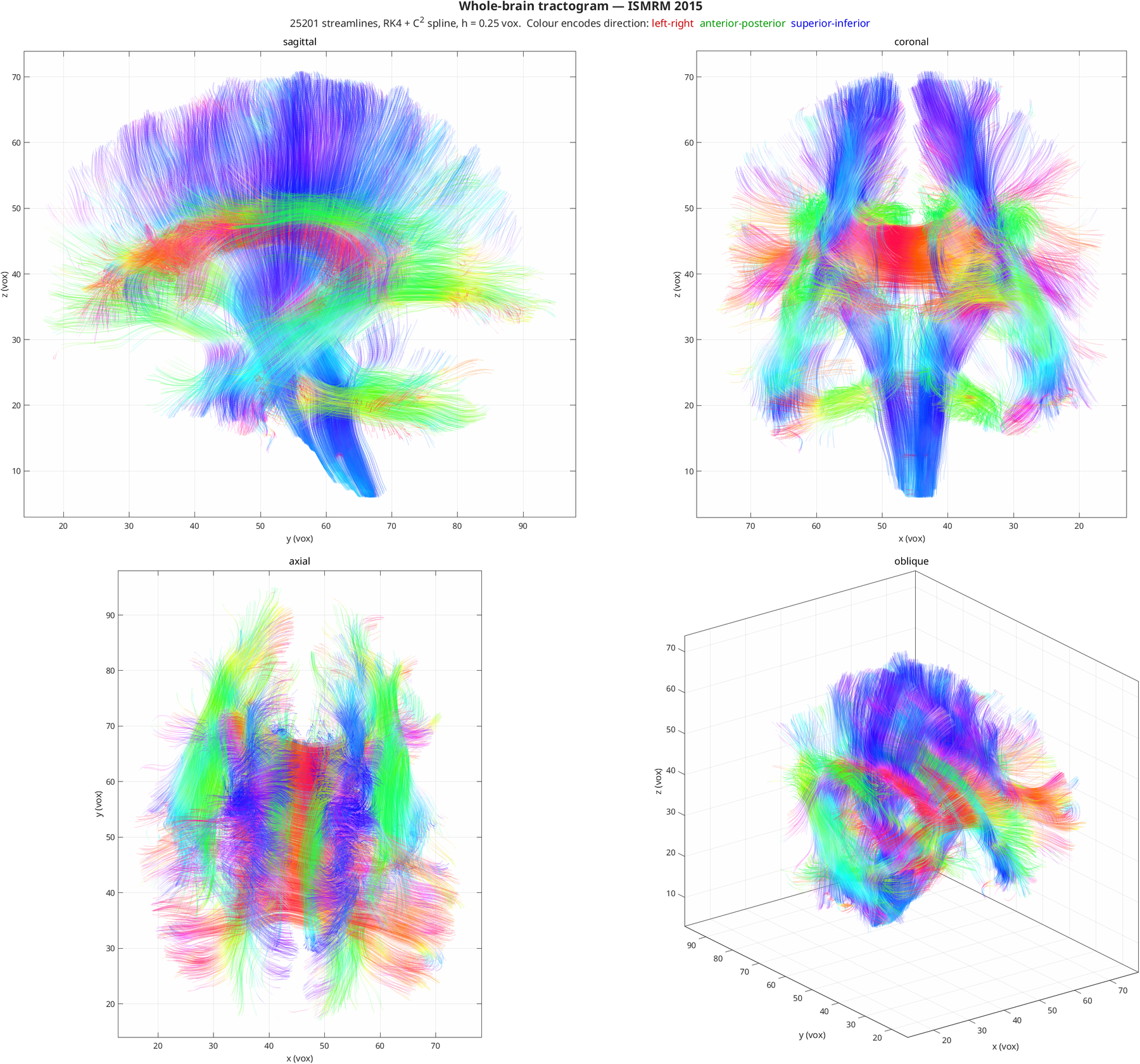

Whole-brain tractogram of the ISMRM 2015 phantom — RK4 with a C² spline interpolant. Colour encodes direction: red left–right, green anterior–posterior, blue superior–inferior.

Pipeline

HINEC takes raw diffusion-weighted MRI (dMRI) and produces streamline tractography, in six stages:

1. Preprocessing — denoising, motion and eddy-current correction, brain extraction and registration, via FSL
2. Diffusion tensor estimation — SPD-constrained fitting
3. FA computation — fractional anisotropy maps
4. Parcellation — atlas-based brain region labelling
5. Tractography — FACT, interpolated high-order streamlines, or connection-form Method of Moving Frames
6. Visualization — 3D rendering and pre-cached slice viewing

Three trackers share one processed nim struct, selected by algorithm: in the config: standard (FACT, discrete voxel tensors), hinec (interpolated direction field, Euler/RK2/RK4/RKF45 integration, optional ACT) and mmf (moving frames driven by the connection 1-form). The direction source is dti (tensor principal eigenvector) or csd (FOD peaks), independently of the integrator.

Quick Start

Preprocess once, then iterate on tractography:

# Build the processed nim (preprocessing + DTI + FA + parcellation)
./bin/run_hinec.sh data/ismrm2015/ismrm2015 ismrm2015.mat config/ismrm2015.yml

# Track on the already-processed nim — one run directory per config
./bin/run_tractography.sh hinec_dti --score

# Sweep a parameter without writing a new config
./bin/run_tractography.sh hinec_dti --set integrator.step=0.05

Or from MATLAB:

config   = load_config_yaml('config/hinec_dti.yml');
run_info = create_run_directory('config/hinec_dti.yml');
main('data/ismrm2015/ismrm2015', 'ismrm2015.mat', config, run_info);
runTractography(fullfile(run_info.output_dir, 'ismrm2015.mat'), config, run_info);
